Drum grabber for forklift
Product
This grabber is designed for handling 55- and 30-gallon steel and plastic drums.
Scope of Works
Develop a production-ready 3D model of the grabber, along with manufacturing drawings and laser cutting files. Perform FEA to validate critical areas.
Input: set of initial requirements.
Deliverables
- 3D model in STEP format
- Technical drawings in PDF
- Bill of Materials (Excel)
- Laser cutting files in DXF
- FEA simulation report in PDF
Features

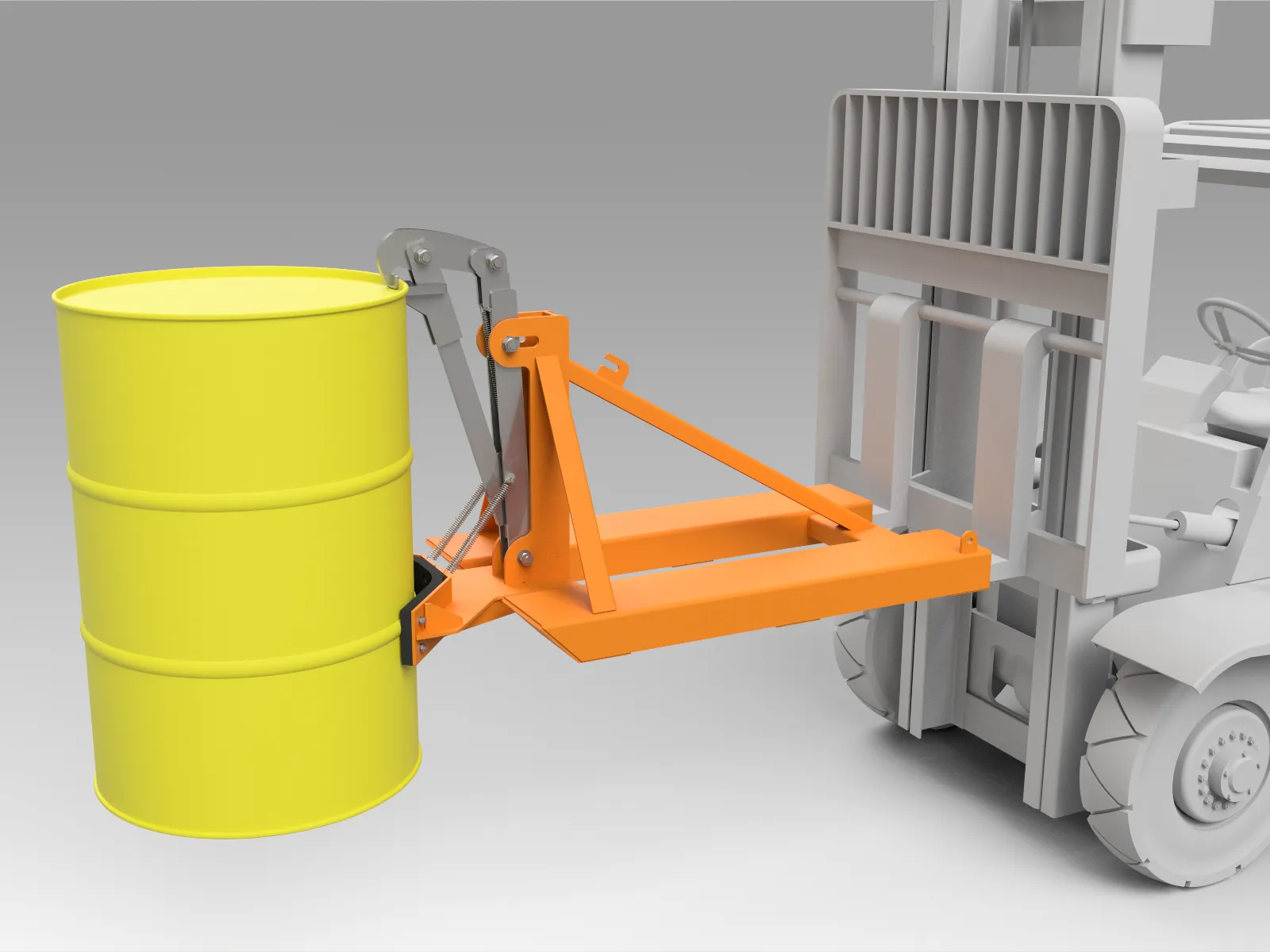

The grabber automatically grips and releases the drums, allowing the operator to stay in the driver’s seat.
Price range
$200-$400
Project duration
7-10 days

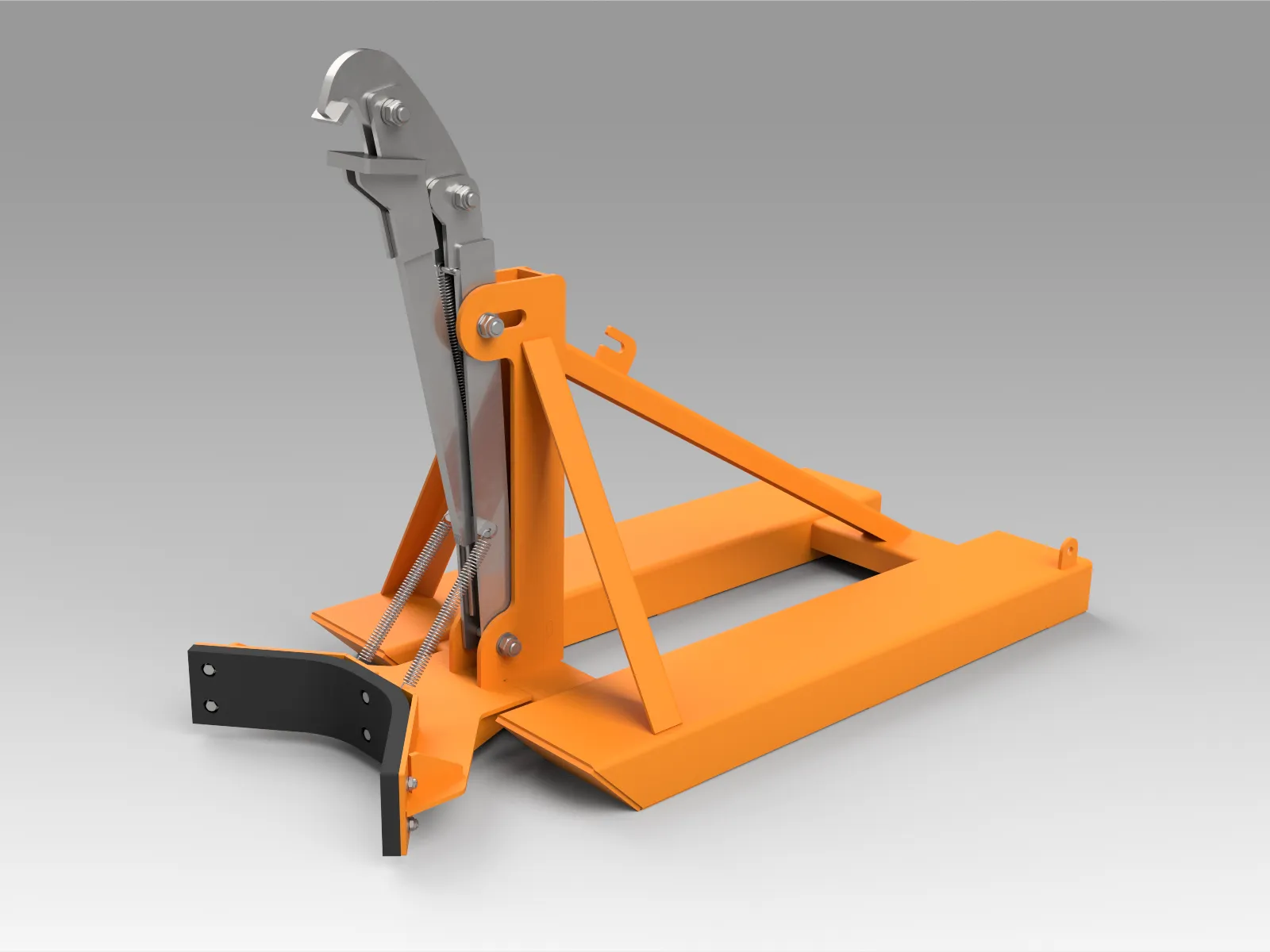

Grabber for 55/30 gallon steel and plastic drums
Simple design for laser cutting and bending

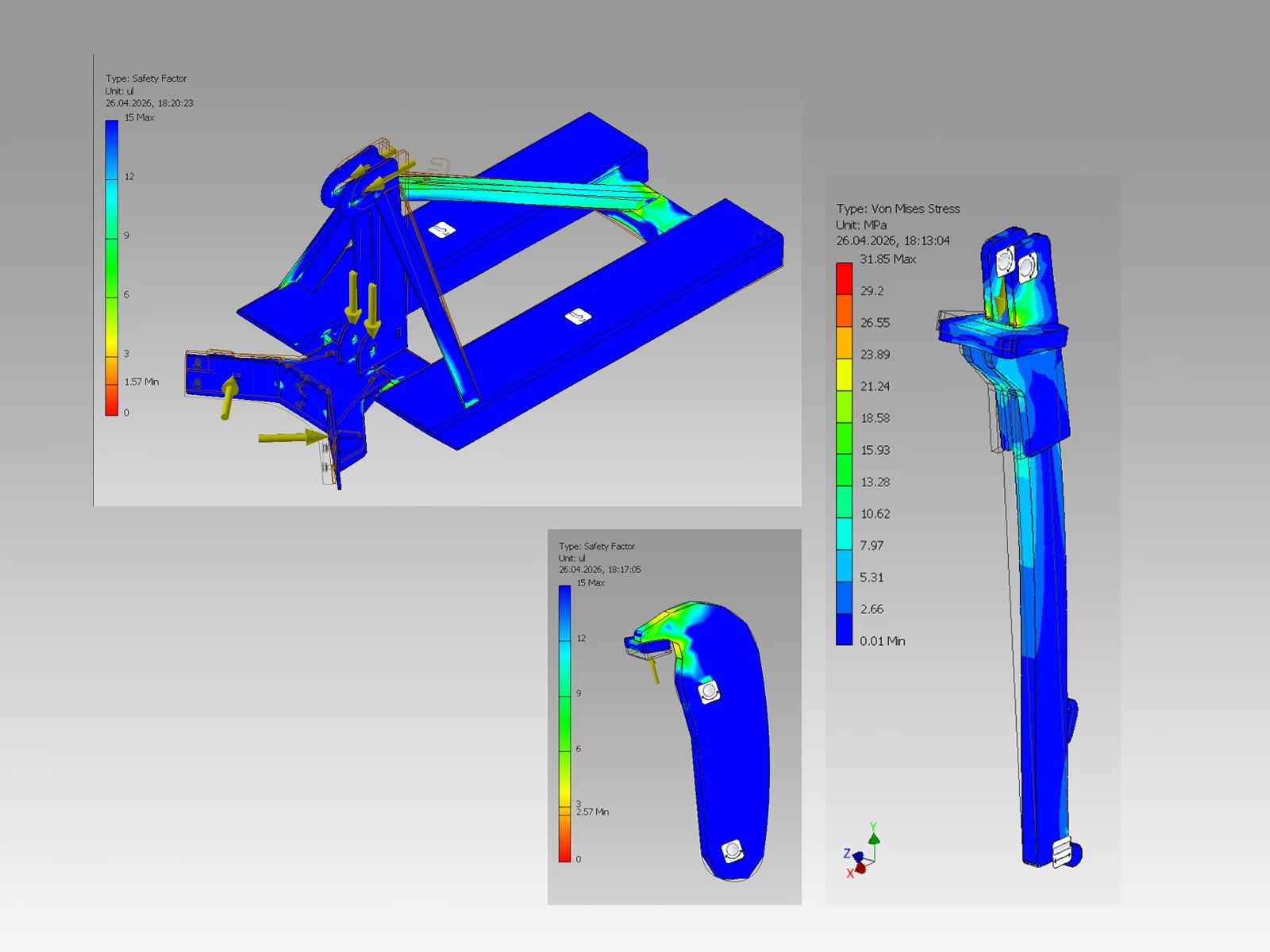

FEA simulation plots to confirm strength and rigidity

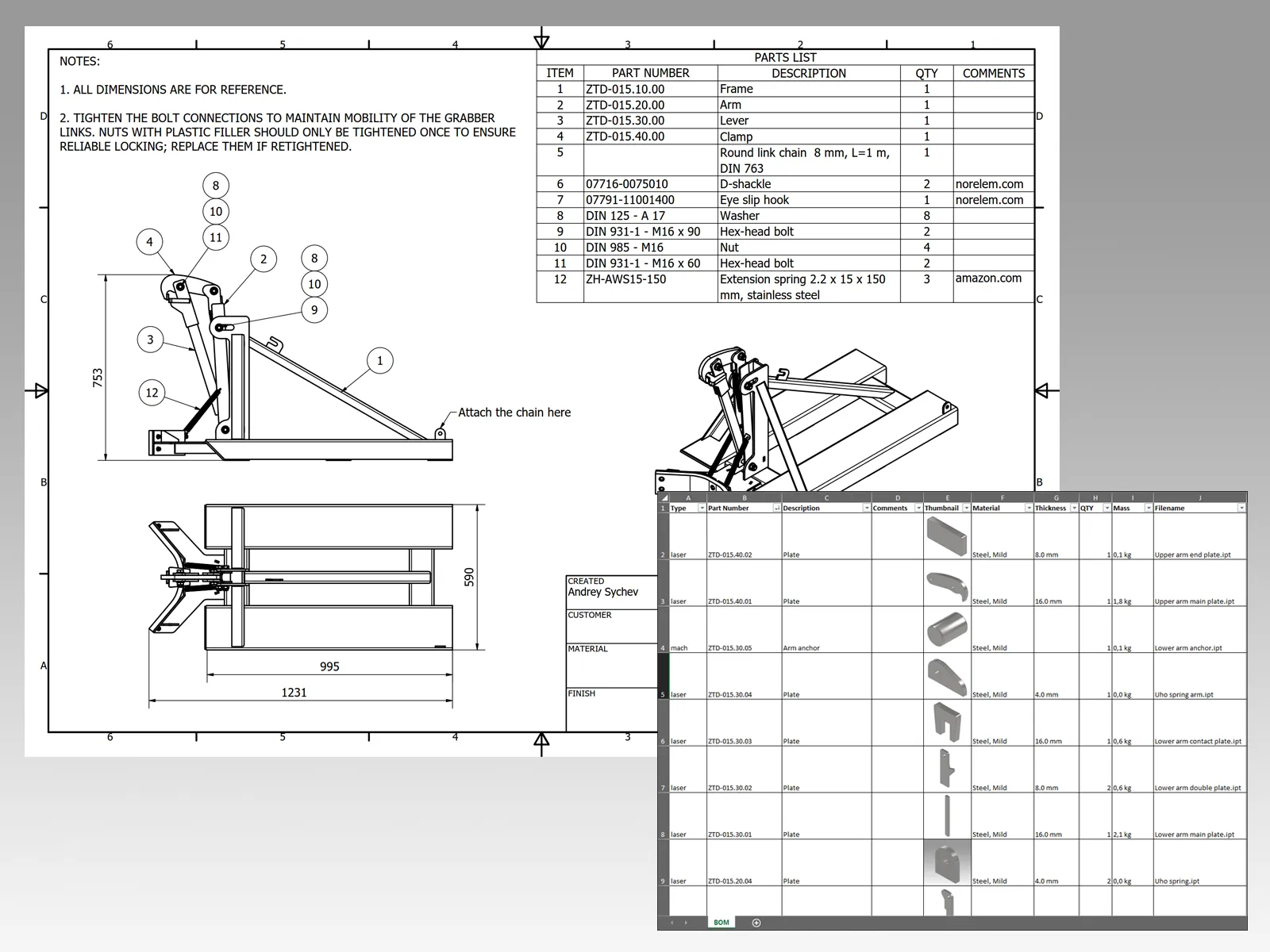

Assembly drawing and Bill of Materials (ISO standard)
