Cantilever arm welding jig
Product
A welding jig for cantilever arms, developed for a global manufacturer of support systems, cable trays, and cable ladders. The jig allows operators to load components into pneumatic clamps while a robot performs sequential welding. Multiple jigs are typically connected to a single welding robot.
Scope of Works
Develop a production-ready 3D model of the jig, along with manufacturing drawings and laser cutting files. Key requirements included high positioning accuracy and repeatability, robot accessibility, and keeping critical positioning areas free from weld spatter.
Input: 3D models of the product (12 arm variants of different sizes) and overall jig dimensions.
Deliverables
- 3D model in STEP format
- Technical drawings in PDF
- Bill of Materials (Excel)
- Laser cutting files in DXF
Features
The design is based on identical modular units, allowing the jig length to be easily adjusted depending on available shop floor space.
Price range
$600-$800
Project duration
20-25 days
Cantilever arm welding jig for a robotic production line

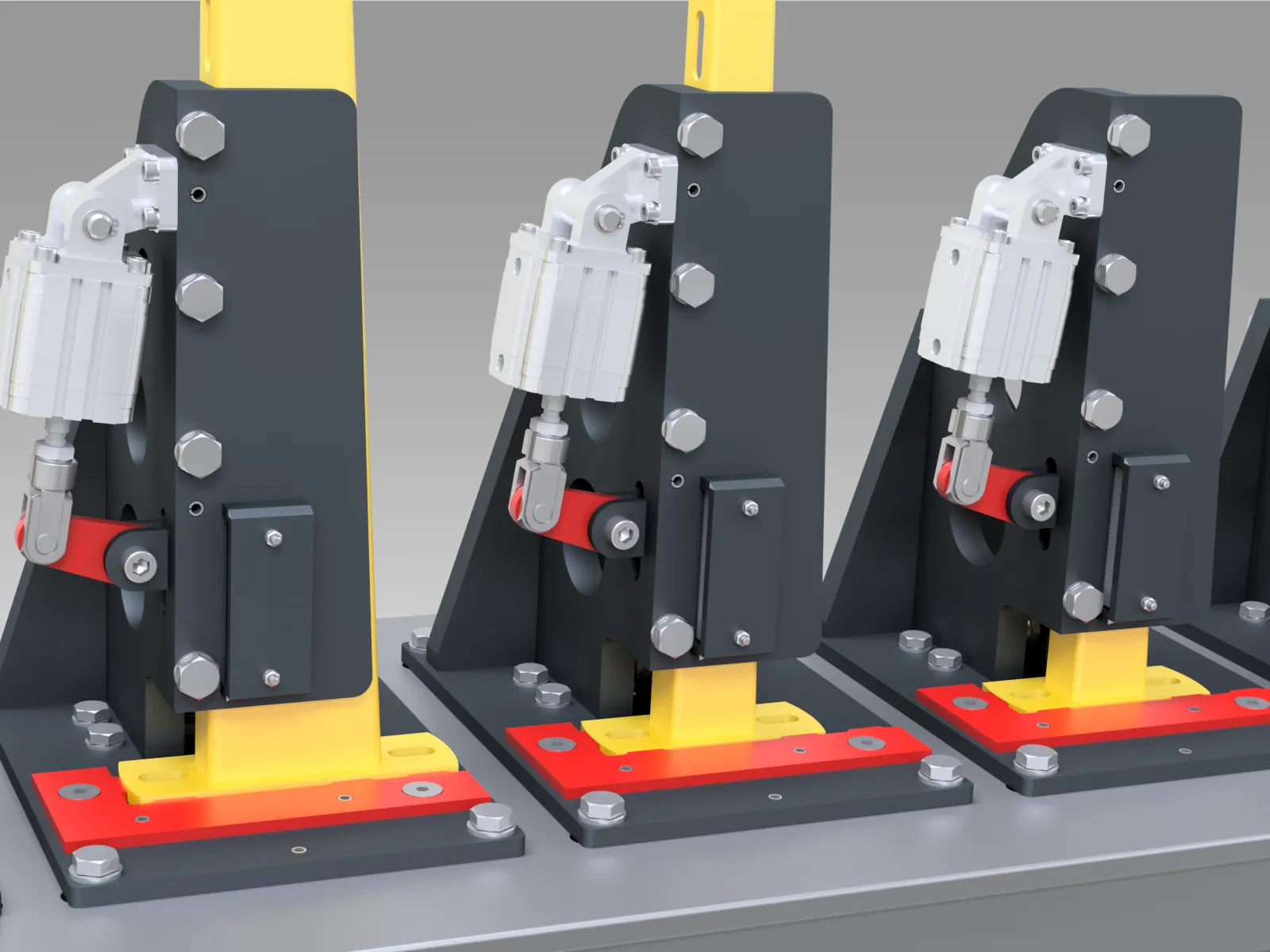

Detailed view of the clamp unit with the cantilever arm

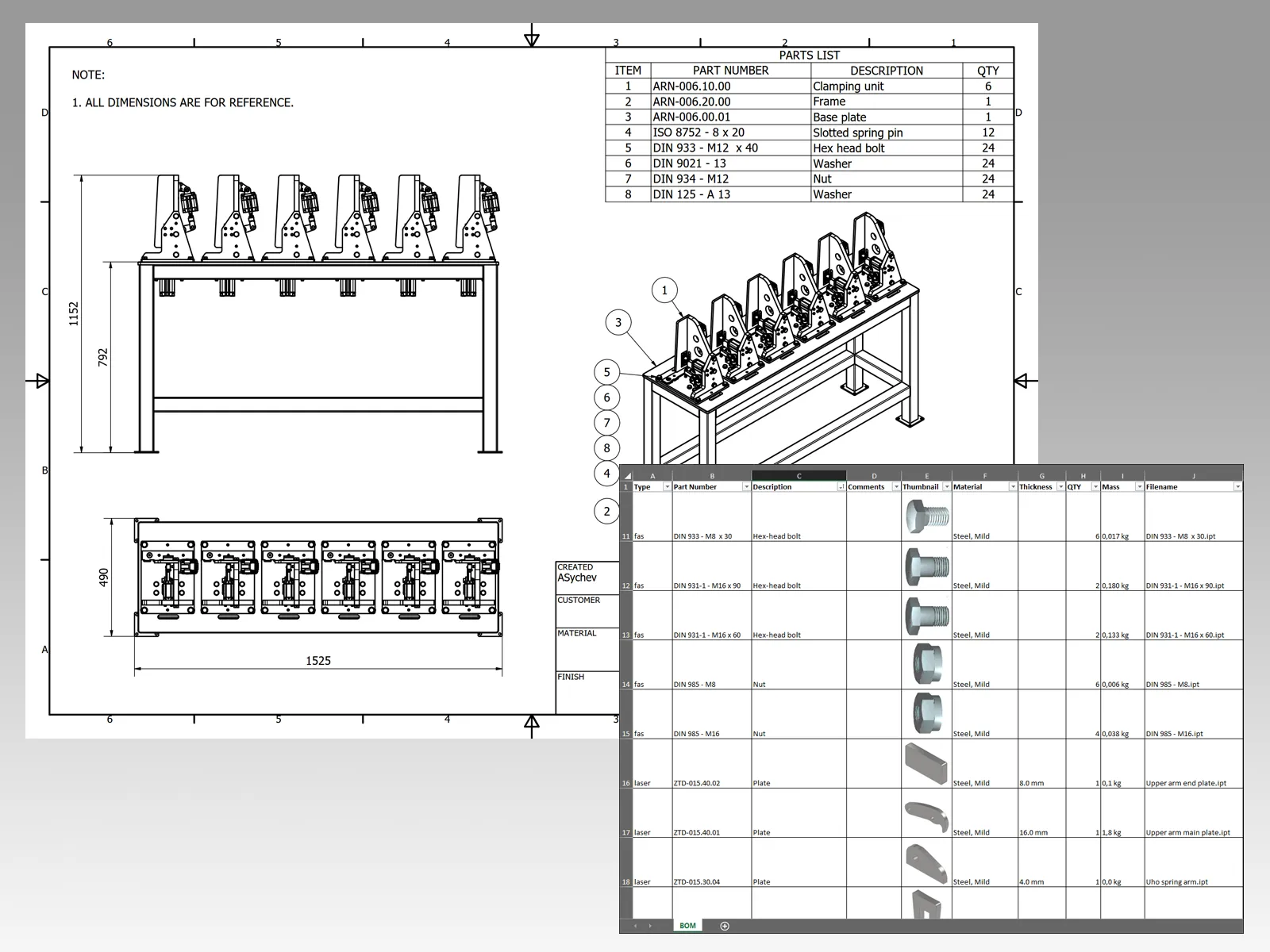

Assembly drawing and Bill of Materials (ISO standard)
